SiT8209 MEMS
Product > MEMS Oscillator List > High Performance MEMS > SiT8209 MEMS
| Specifications and Dimensions |
Features
Any frequency between 80.000001 and 220 MHz accurate to 6 decimal places
Frequency stability as low as ±10ppm
Ultra-low phase jitter: 0.5ps (12 kHz~20 MHz)
Standby mode for longer battery life
LVCMOS/LVTTL compatible output
Size with 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm
Automatic mounting and reflow soldering
Applications: SATA, SAS, Ethernet, Storage, Network, Telecom, Industrial control, etc.
RoHS Compliant / Pb Free
Specifications
| Type | SiT8209 Ultra-High Performance MEMS |
| Output Type | LVCMOS |
| Frequency Range | 80.000001MHz~220MHz |
| Supply Voltage | 1.8V /2.5V /2.8V /3.3V |
| Frequency Stability | ±10ppm /±20ppm /±25ppm /±50ppm |
| Current Consumption | 36mA Max. |
| Standby Current | 70μA Max. |
| OE Disable Current | 31mA Max. |
| Operating Temperature | -20~+70℃ /-40~+85℃ |
| Duty Cycle | 45~55%(f<=165MHz) /40~60%(f>165MHz) |
| Rise /Fall Time | 2ns Max. |
| Voltage Vol(Max.) /Voh(Min.) | 10% Vcc/90% Vcc |
| Voltage Vil(Max.) /Vih(Min.) | 30% Vcc/70% Vcc |
| Input Pull-up Impedance | 250KΩ Μax. (Pin1 Logic High) |
| 2MΩ Μin. (Pin1 Logic Low) | |
| Start-up Time | 10ms Max. |
| Enable /Disable Time | 115ns Max. |
| Resume Time | 10ms Max. |
| RMS Period Jitter | 3ps Max. |
| RMS Phase Jitter (12KHz~20MHz) | 1ps Max. (0.5ps Typ.) |
| Storage Temperature | -65~+150℃ |
| First Year Aging (at 25℃) | ±1.5ppm Max. |
| 10-years Aging (at 25℃) | ±5ppm Max. |
| Size (mm×mm) | 2.5×2.0 /3.2×2.5 /5.0×3.2 /7.0×5.0 |
| Packing Unit | 2520, 3225: 3000pcs./Reel 5032, 7050: 1000pcs./Reel |

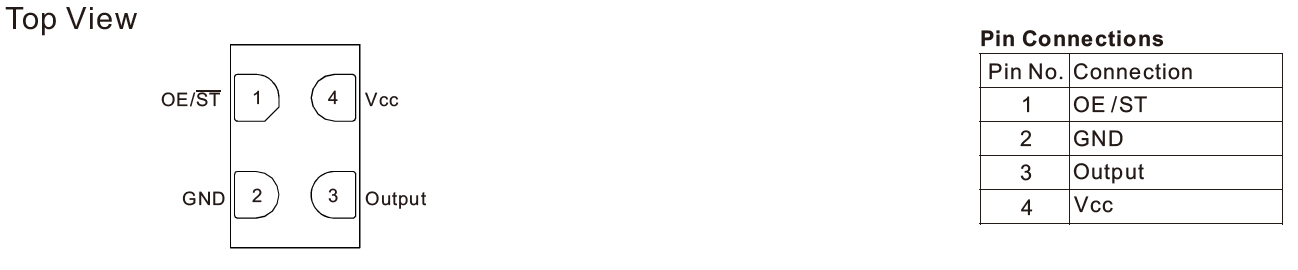

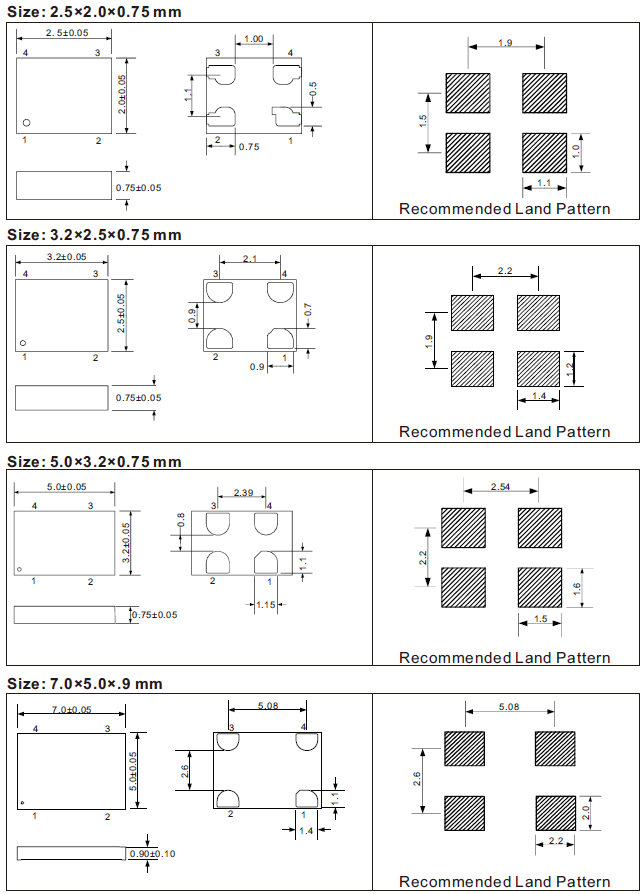

Dimensions [mm]
