SAW Resonator
Product > SAW Device List > SAW Resonator| Series | Photo | Size / Pins | Frequency Range | Insertion Loss | Operating Temperature | Data Sheet |
| D-11 SAW Resonator |
|
8.36x3.45x1.70mm THT / 3 pins | 303~868MHz | 1.5dB | -20~+70ºC |
|
| 6026 SAW Resonator |
|
6.0x2.6mm SMD / 3 pins | 310~433.92MHz | 1.6dB | -40~+85ºC |
|
| 1814 SAW Resonator |
|
1.8x1.4mm SMD / 2 pins | 315~868.35MHz | 1.3dB | -40~+85ºC |
|
| 2016 SAW Resonator |
|
2.0x1.6mm SMD / 2 pins | 304.45~433.92MHz | 1.3 dB | -40~+85ºC |
|
| F-11 SAW Resonator |
|
10.9×4.45×4.0mm THT / 4 pins | 303~868.35MHz | 2.1dB | -20~+70ºC |
|
| TO-39 SAW Resonator |
|
Ø9.15×3.5mm THT / 3 pins | 303~868.35MHz | 2.1dB | -20~+70ºC |
|
| 6AW SAW Resonator |
|
3.2×2.5mm SMD / 2 & 4 pins | 310~433.92MHz | 2.0dB | -20~+70ºC |
|
| DCC6C SAW Resonator |
|
3.0×3.0mm SMD / 6 pins | 314~922MHz | 1.2dB | -40~+85ºC |
|
| DCC6 SAW Resonator |
|
3.8×3.8mm SMD / 6 pins | 315~868.35MHz | 1.5dB | -40~+85ºC |
|
| QCC4A SAW Resonator |
|
5.0×3.5mm SMD / 4 pins | 315~868.35MHz | 1.2dB | -40~+85ºC |
|
| QCC8C SAW Resonator |
|
5.0×5.0mm SMD / 8 pins | 299~868.350MHz | 1.2dB | -40~+85ºC |
|

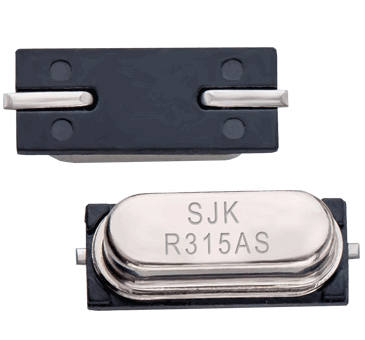

| 49SMD SAW Resonator |
|
12.7×4.8×3.2mm SMD / 2 pins | 315 / 433.92MHz | 2.5dB | -40~+85ºC |
|
