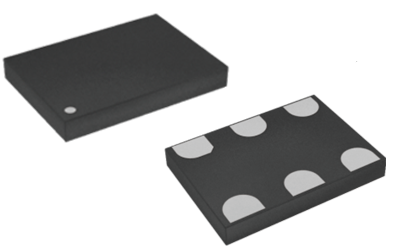

SJK9120 LVDS MEMS Oscillator
Product > MEMS Oscillator > LVPECL / LVDS Oscillator > SJK9120 LVDS MEMS Oscillator
| Specifications and Dimensions |
Features Of SJK9120 Series LVDS Output MEMS Programmable Oscillator
Output frequency range from 25MHz to 212.5MHz
Excellent frequency stability as low as ±10ppm
0.6ps RMS phase jitter over 12KHz to 20MHz
Industrial and extended commercial temperature range
LVDS output signaling types
Size with 3.2×2.5, 5.0×3.2, 7.0×5.0, mm×mm
Automatic mounting and reflow soldering
Applications: 10G Ethernet, SONET, SATA, SAS, Telecom, Storage, Server, etc
RoHS Compliant /Pb Free
Electronical Specifications Of SJK9120 Series LVDS Output MEMS Programmable Oscillator
| Item/Type | SJK9120-LVDS |
| Output Type | LVDS |
| Frequency Range | 25~212.5MHz |
| Supply Voltage | 2.5V/3.3V/2.25~3.62V |
| Frequency Stability | ±10ppm~±50ppm, or specify |
| Operating Temperatuer | -20~+70℃, -40~+85℃ |
| Input Voltage High (VIH) | 70% Vdd |
| Input Voltage Low (VIL) | 30% Vdd |
| Input Pull-up Impedance | 250KΩ Μax. (Pin1 Logic High) |
| 2MΩ Μin. (Pin1 Logic Low) | |
| Start-up Time | 10ms Max. |
| Resume Time | 10ms Max. |
| Duty Cycle | 45~55% |
| Current Consumption | 55mA Max. |
| OE Disable Supply Current | 35mA Max. |
| Differential Output Voltage | 450mV Max. |
| Output Disable Leakage Current | 1μΑ Μax. |
| Standby Current | 100μA Max. |
| VOD Magnitude Change | 50mV |
| Offset Voltage | 1.375V Max. |
| VOS Magnitude Change | 50mV Max. |
| Rise/Fall Time | 600ps Max. |
| OE Enable/Disable Time | 115ns Max. |
| RMS Period Jitter | 1.7pS Max. |
| RMS Period Jitter (Random) | 0.85pS Max. |
| Storage Temperature Range | -60~+150℃ |
| Packing Unit | 3225: 3000pcs./reel 5032 /7050: 1000pcs./reel |
Pin Functions & Dimensions:
Pin Functions
Dimensions[mm]
