Product
ZTT Series-DIP
Model: ZTT Series For DIP Type
Frequency range: 1.79~60MHz
Size: 10×7.5×4.0 mm
Applications: Security, Consumer device, TV, Radio, PC, etc

Specifications and Dimensions

Features For ZTA Series Ceramic Resonators:

All (ZTT) are epoxy coated and completely washable

Resistance to damage from impact and vibration

Low cost

Excellent temperature stability (±3%)

DIP type package

Frequency range: 1.79MHz~60MHz

Application: Security, Consumer device, TV, Radio, PC, Receiver, etc

RoHS Compliant




Electrical Specifications For ZTT Series Ceramic Resonators:

Part NumberFrequency Range (MHz)Frequency Accuracy (at 25℃)Frequency StabilityOperating TemperatureAging For Ten Year (%)
ZTT...MG1.79~6.00±0.5%±0.3%-25~+85℃±0.3
ZTTWS...MG1.79~6.00±0.5%±0.3%-25~+85℃±0.3
ZTTLS...MG3.00~8.00±0.5%±0.3%-25~+85℃±0.3
ZTTRS...MG3.00~10.00±0.5%±0.3%-25~+85℃±0.3
ZTT...MT6.00~13.00±0.5%±0.3%-25~+85℃±0.3
ZTT...MX12.00~60.00±0.5%±0.3%-25~+85℃±0.3

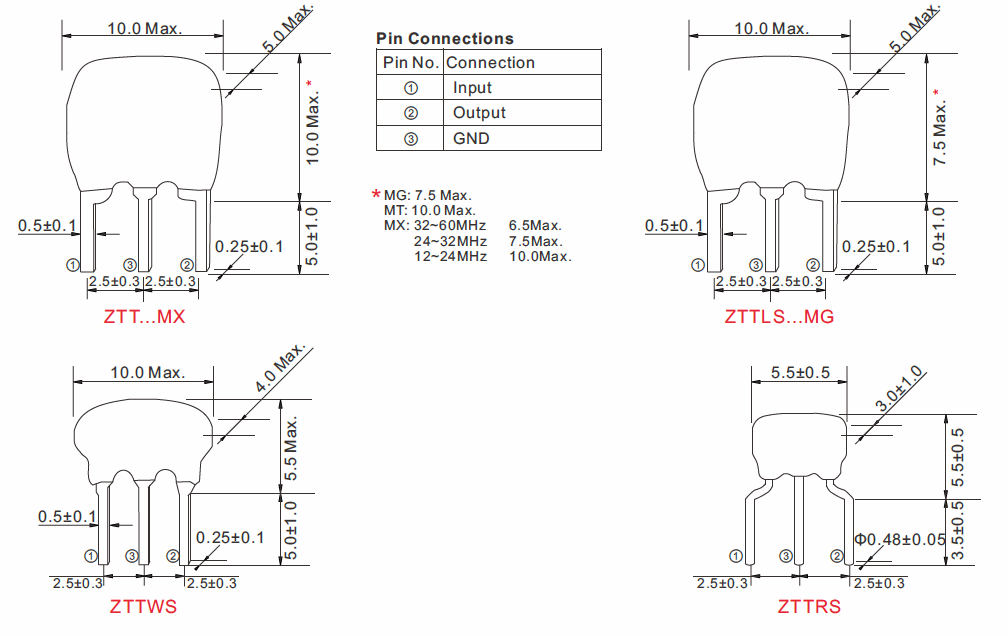

Dimensions[mm]:

ZTT-Dimensions
