6GB SMD 6035 Crystal Resonators
Product > Crystal Resonator > MHz Crystal > 6GB SMD 6035 Crystal Resonators
| Specifications and Dimensions |
Features Of 6GB Series SMD 6035 Crystal Units
6035 size miniature SMD crystal resonator with a low proflie of 1.2mm
Wide frequency range from 8MHz up to 100MHz
High precision and high reliability
4 Pads package
Automatic mounting and reflow soldering
Applications: Automotive applications, Server, Radio communications, PDA, FA, GPS, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6GB Series SMD 6035 Crystal Units
| Item /Type | 6GB Series (SMD 6035 Crytal Units) | |||
| Frequency Range | 8~10MHz | 10~12MHz | 12~40MHz | 40~100MHz |
| Overtone Order | Fundamental | 3rd Overtone | ||
| Load Capacitance | 10pF, 16pF, 20pF, or specify | |||
| Drive Level | 1~200μW Max. (100μW Typ.) | |||
| Frequency Tolerance | ±10ppm, ±20ppm ,±30ppm, or specify | |||
| Series Resistance | 150Ω Max. | 80Ω Max. | 50Ω Max. | 70Ω Max. |
| Shunt Capacitance | 5pF Max. | |||
| Operating Temperature | -20~+70℃, -40~+85℃, or specify | |||
| Storage Temperature | -55~+125℃ | |||
| Aging (at 25℃) | ±3ppm /Year Max. | |||
| Packing Unit | 1000pcs./Reel | |||

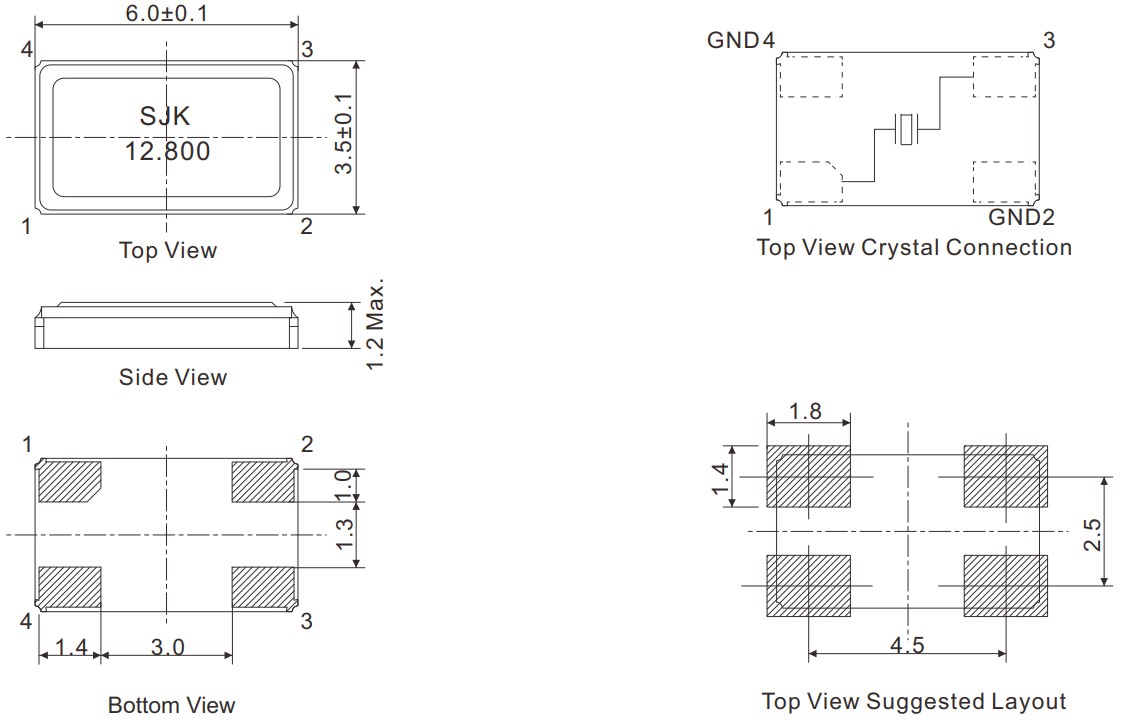

Dimensions[mm]
