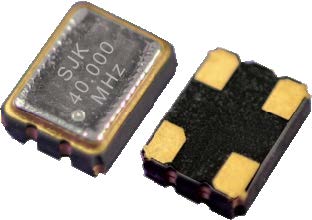

7T SMD3225 TCXO
Product > Crystal Oscillator List > TCXO > 7T SMD3225 TCXO
| Specifications and Dimensions |
Features
Output frequency range from 10MHz to 60MHz, 32.768kHz available.
3225 size, 1.0mm high SMD TCXO (Temperature Compensated Crystal Oscillator)
Low voltage operation and low phase noise
Temperature stability: ±0.5ppm~±5.0ppm
3-state function available
Automatic mounting and reflow soldering
Applications: Smartphones, Wearables, IoT, GPS, GNSS, Telecommunications, Industrial radio communications, WLAN and more
RoHS Compliant & Pb-Free
Specifications
| Type | 7T Series SMD 3225 TCXO | |||
| Output Type | CMOS | |||
| Output Load | 15pF | |||
| Supply Voltage | 1.8V /2.5V /3.3V | |||
| Frequency Range | 32.768kHz | 10~60MHz | ||
| Supply Current | 3.0μA Max. | 10.0mA Max. | ||
| Symmetry | 40~60% | |||
| Frequency Stability | Tolerance | ±1.0ppm Max. (after 2 reflows ) | ||
| vs Temperature | ±3.8ppm~±5.0ppm | ±0.5ppm~±3.0ppm | ||
| vs Supply Voltage | ±0.3ppm Max. (Vcc±5%) | ±0.3ppm Max. (Vcc±5%) | ||
| vs Load | ±0.2ppm Max. (Load varies±10%) | ±0.3ppm Max. (Load varies±10%) | ||
| vs Aging | ±3.0ppm Max./Year | ±1.0ppm Max./Year | ||
| 0 Level Output Voltage (VOL) | Vcc×0.1 max. | |||
| 1 Level Output Voltage (VOH) | Vcc×0.9 min. | |||
| Rise Time /Fall Time | 100ns Max. | 10ns Max. | ||
| Start-up Time | 0.5s Max. | 5.0ms Max. | ||
| Operating Temperature | -30~+85°C, -40~+85°C, or specify | |||
| Phase Noise | 100Hz | - | -115dBc/Hz | |
| 1KHz | - | -133dBc/Hz | ||
| 10KHz | - | -149dBc/Hz | ||
| Packing Unit | 3000pcs./Reel | |||

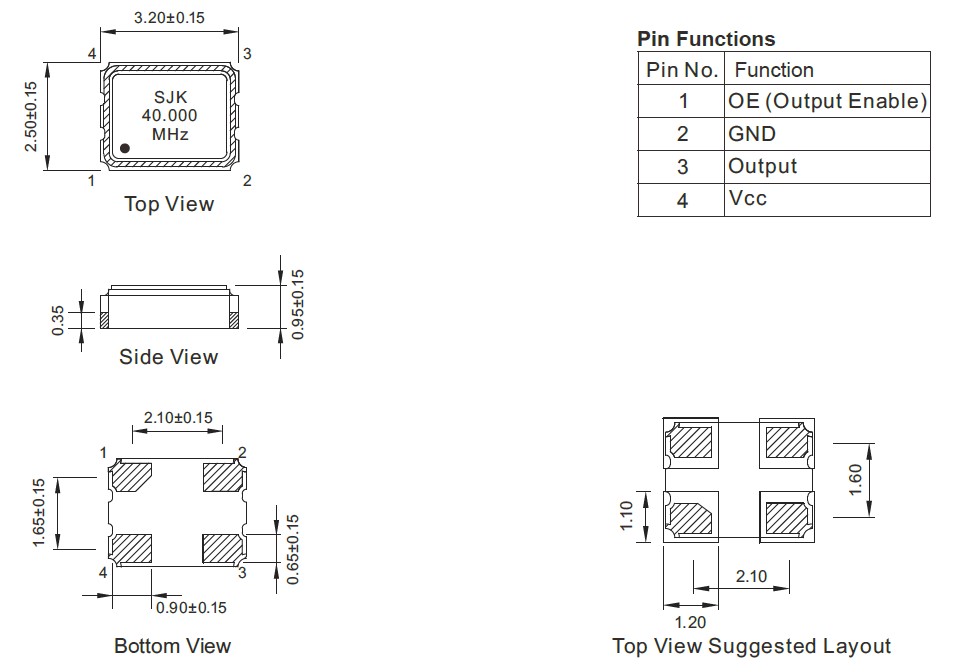

Dimensions [mm]
