3N SMD 3225 Crystal Oscillator
Product > Crystal Oscillator > SPXO > 3N SMD 3225 Crystal Oscillator
| Specifications and Dimensions |

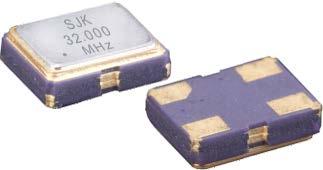

Features Of 3N Series SMD 3225 Crystal Oscillators
3225 size, low profile of 1.0mm, extremely small SMD crystal oscillators
CMOS output.
Low voltage operation: 1.8~3.3V
Frequency range: 1MHz to 125MHz
3-state function
High reliable environmental performance
Low Current consumption
Automatic mounting and reflow sodlering
Applications: Wireless communications, PC, Peripherals, Visual, Phone, Car applications, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 3N Series SMD 3225 Crystal Oscillators
| Item /Type | 3N (SMD 3225 Crystal Oscillators) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V (1.8V, 2.5V, available) |
| Frequency Range | 1~125MHz |
| Frequency Stability | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 8ns Max. |
| Supply Current | 15mA Max. |
| Symmetry | 45~55% |
| Start-up Time | 5ms Max. |
| Period Jitter | 40 pSec |
| Phase Jitter | 1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 3000pcs. /Reel |

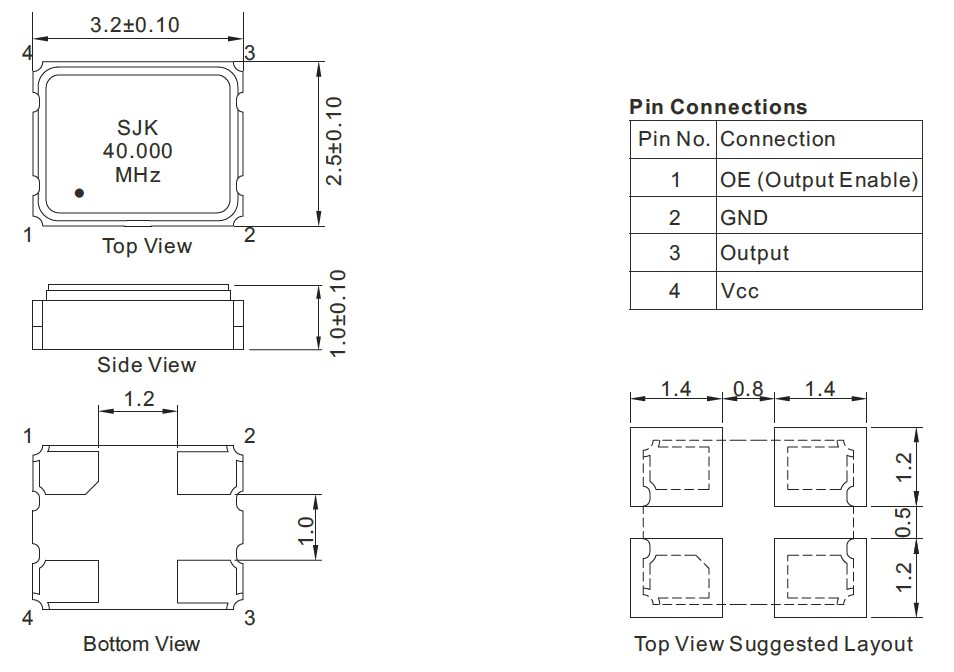

Dimensions[mm]
