2N SMD 2520 Crystal Oscillators

Product > Crystal Oscillator > SPXO > 2N SMD 2520 Crystal Oscillators
2N SMD 2520 Crystal Oscillators
Item: 2N Series (SMD 2520 Crystal Oscillators)
Frequency Range: 4~75MHz
Supply Voltage: 1.8~3.3V
Size: 2.5×.0×0.8mm
Function: 3-state
Applications: WLAN,GPS, Car applications, etc.

Specifications and Dimensions

Features Of 2N Series SMD 2520 Crystal Oscillators

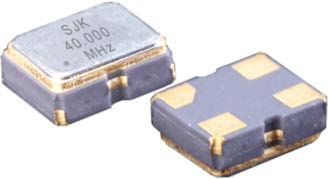

2520 size, low profile of 0.8mm, extremely small SMD crystal oscillators

CMOS output.

Low voltage operation: 1.8~3.3V

Frequency range: 4MHz to 75MHz

3-state function

High reliable environmental performance

Low Current consumption

Automatic mounting and reflow sodlering

Applications: Wireless communications, GPS, WLAN, Cellular, Phone, Car applications, etc

RoHS Compliant /Pb-Free






Electrical Specifications Of 2N Series SMD 2520 Crystal Oscillators

Item /Type2N (SMD 2520 Crystal Oscillators)
Output Type
CMOS
Output Load15pF, or specify
Supply Voltage3.3V (1.8V, 2.5V, available)
Frequency Range4~75MHz
Frequency Stability±25ppm, ±50ppm, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature-55~+125℃
Voltage Vol (Max.) /Voh (Min.)
0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time5ns Max.
Supply Current
10mA Max.
Symmetry
45~55%
Start-up Time
5ms Max.
Period Jitter40 pSec
Phase Jitter1 ps Max.
Aging (at 25℃)±3ppm /Year Max.
Packing Unit3000pcs. /Reel


Dimensions[mm]

smd-2520-crystal-oscillator-dimensions
