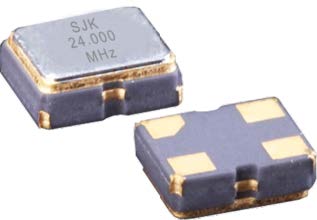

1N SMD 2016 Crystal Oscillators
Item: 1N Series (SMD 2016 Crystal Oscillators)
Frequency Range: 4~54MHz
Supply Voltage: 1.8~3.3V
Size: 2.0×1.6×0.75mm
Function: 3-state
Applications: Wireless communications, GPS, Cellular, Phone, Car applications, etc

Specifications and Dimensions

Features Of 1N Series SMD 2016 Crystal Oscillators

2016 size, low profile of 0.75mm, extremely small SMD crystal oscillators

CMOS output.

Low voltage operation: 1.8~3.3V

Frequency range: 4MHz to 54MHz

3-state function

High reliable environmental performance

Low Current consumption

Automatic mounting and reflow sodlering

Applications: Wireless communications, GPS, Cellular, Phone, Car applications, etc

RoHS Compliant /Pb-Free





Electrical Specifications Of 1N Series SMD 2016 Crystal Oscillators

Item /Type1N (SMD 2016 Crystal Oscillators)
Output Type
CMOS
Output Load15pF, or specify
Supply Voltage3.3V (1.8V, 2.5V, available)
Frequency Range4~54MHz
Frequency Stability±25ppm, ±50ppm, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature-55~+125
Voltage Vol (Max.) /Voh (Min.)
0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time5ns Max.
Supply Current
5mA Max.
Symmetry
45~55%
Start-up Time
5ms Max.
Period Jitter40 pSec
Phase Jitter1 ps Max.
Aging (at 25)3ppm /Year Max.
Packing Unit3000pcs. /Reel

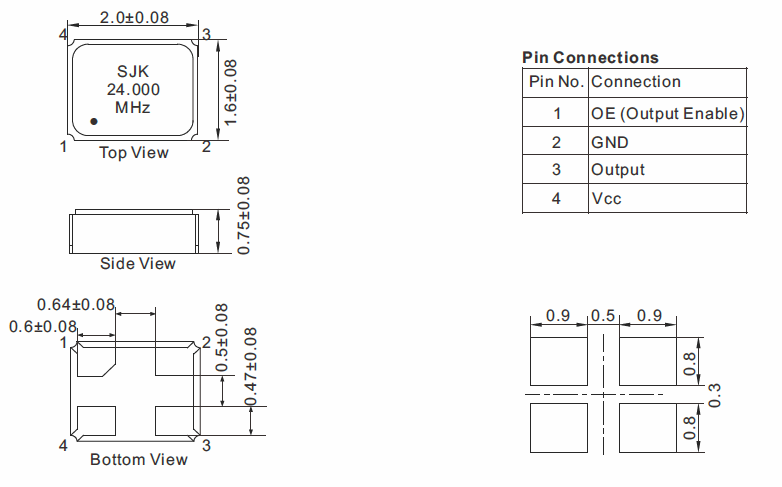

Dimensions[mm]

SMD-2016-Crystal-Oscillator-Dimensions
