5J LVPECL SMD 5032 Oscillator
Model: 5J Series (LVPECL output SMD 5032 Crystal Oscillator)
Output frequency: 10~320MHz
Supply voltage: 2.5V /3.3V
Output type: LVPECL
Frequency stability: ±25ppm, or specify
Size: 5.0×3.2×1.2mm
Applications: Server, Communication device, Optical transmission device, etc

Specifications and Dimensions

Features Of 5J Series LVPECL Output SMD 5032 Crystal Oscillator

Differential Output Crystal Oscillator (LV-PECL Output)

Output frequency range from 10MHz to 320MHz

Low supply voltage operation: 2.5V/3.3V

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: PC, Server, Fibre channel, Gigabit ethernet, Base station, Mobile communications, etc

RoHS Compliant /Pb-Free




Electrical Specifications Of 5J Series LVPECL Output SMD 5032 Crystal Oscillator

Item /Type5J Series (LVPECL Output SMD 5032 Crystal Oscillator)
Output Type
LVPECL
Output Load50Ω to Vcc-2V
Supply Voltage
2.5V/3.3V
Frequency Range10~320MHz
Supply Current
50mA Max.
Overall Frequency Stability*
±25ppm, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature-55~+125℃
Voltage Vol (Max.) /Voh (Min.)
Vcc-1.62V /Vcc-1.026V
Rise (Tr) /Fall (Tf) Time
1ns Max.
Duty Cycle45~55%
Start-up Time10ms Max.
Phase Noise (156.25MHz) @1KHz
-105dBc/Hz
Phase Jitter (12KHz~20MHz)
1pS Max.
Aging (at 25℃)
±3ppm/Year Max.
Packing Unit1000pcs./Reel

*: Inclusive of frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

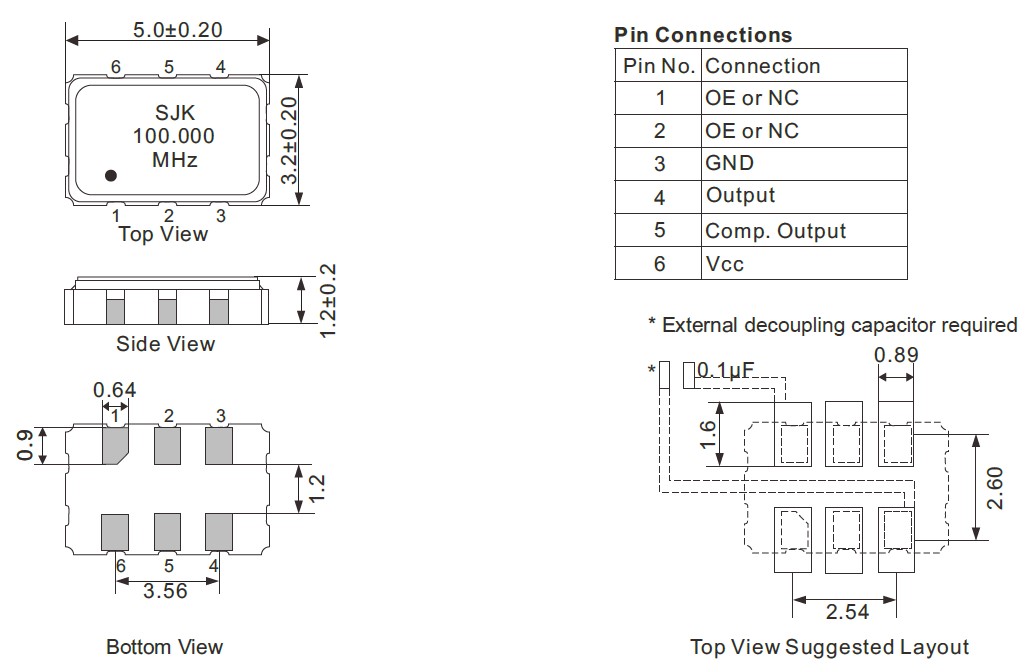

Dimensions[mm]

LVPECL-SMD-5032-Crystal-Oscillator-Dimensions
