6MF Oscillator
Type: 6MF Series DIP-14 Crystal Oscillator
Output: CMOS
Frequency Range: 0.25~180MHz
Supply Voltage: 3.3V /5.0V
Size: 20×13×5.3mm
Function: 3-state
Applications: Test Equipment, Electronic Instruments, Telecommunications, etc

Click on INQUIRY FORM for samples or a quotation. We will reply immediately

Specifications and Dimensions


Features


All metal welded package

High precision characteristics cover up to a wide frequency range from 0.25MHz to 180MHz

3.3V / 5.0V operating voltage

CMOS output

3-state function

DIP-14 4-pin  through-hole package (Full-size)

Low phase noise and jitter

Applications: Test equipment, Electronic instruments, Telecommunications, etc

RoHS Compliant & Pb-Free



Specifications



Type6MF Series DIP-14 Crystal Oscillator
Output TypeCMOS
Output Load15pF, or specify
Supply Voltage3.3V / 5.0V
Frequency Range
0.25~180MHz
Frequency Stability±25ppm, ±30ppm or specify
Supply Current50mA Max.
Operating Temperature-40~+85℃, or specify
Storage Temperature-55~+125℃
Voltage Vol (Max.) /Voh (Min.)0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time10ns Max.
Period Jitter40 ps Max.
Duty Cycle40~60%
Start-up Time
10ms Max.
Phase Jitter (12KHz~20MHz)1ps Max.
Aging (at 25℃)±3ppm /Year Max.
Packing Unit100pcs.



Dimensions [mm]

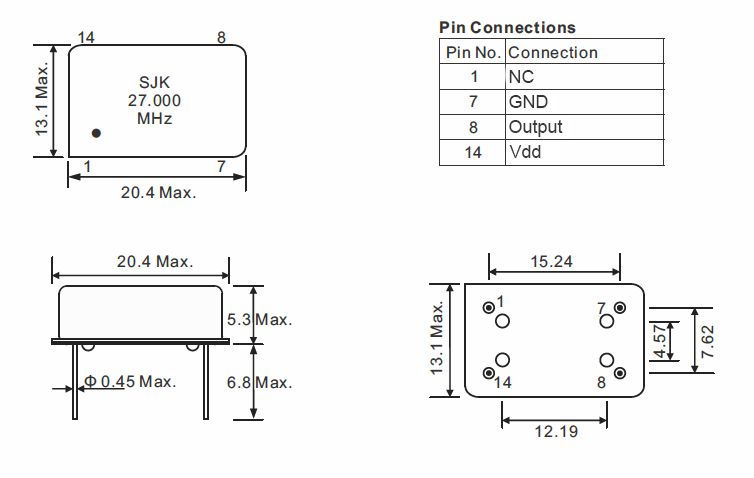

Full-size-Crystal-Oscillator-Dimensions
