6RF Full Size DIP VCXO

Model: 6RF Series (Full-size DIP VCXO)
Frequency range: 1~80MHz
Output type: CMOS
Supply voltage: 3.3V/5V
Size: 21×13.1×5.3mm
Applications: Test equipment, Electronic instruments, Telecommunications, etc

Specifications and Dimensions

Features Of 6RF Series Full-size 14Pin DIP VCXO

All metal welded package

High precision characteristic covering up to wide frquency range from 1MHz to 80MHz

5V/3.3 operating voltage

CMOS output

3-state function

14-Pin DIP (Full-size package)

Applications: Telecommunications, Mobile communications, Avionics, Test equipment, Electronic instruments, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 6RF Series Full-size 14Pin DIP VCXO

Item/Type		6RF Series (Full-size 14Pin DIP VCXO)
Package		All metal, hermetically sealed, welt package
Supply Voltage		3.3V	5V
Frequency Range		1~80MHz
Frequency Stability		±25ppm, ±50ppm, or specify
Operating Temperature		-20~+70℃, -40~+85℃, or specify
Storage Temperature		-55~+125℃
Load		15pF, or specify
	Voltage Voh	3.0V Min.	4.5V Min.
	Voltage Vol	0.3V Max.	0.4V Max.
	Current Ioh	-4.0mA	-8.0mA
	Current Iol	4.0mA	8.0mA
	Duty Cycle	40~60%
	Rise /Fall Time	5ns Max.
Frequency Control		Positive Transfer Characteristic
	Pullability	±50ppm ,±100ppm,±150ppm,±200ppm Min.
	Control Voltage	0.3Vdc to 3.0Vdc	0.5Vdc to 4.5Vdc
	Center Voltage	1.65Vcc	2.5Vcc
	Monotonic Linearity	＜±15%	＜±15%
	Input Impedance	50K ohms Normal
Supply Current		40mA Max.	60mA Max.
Output Type		CMOS
Packing Unit		100pcs.

Dimensions[mm]

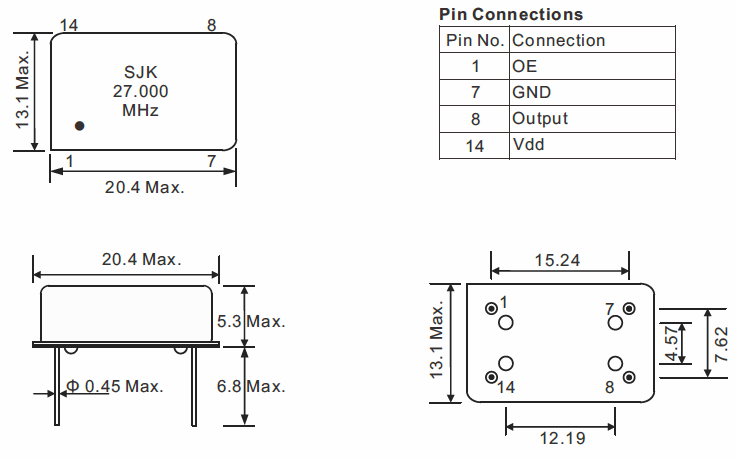

6RF-VCXO-Dimensions
