HomeSMD Crystal
Products
| Series | Photo | Package | Frequency Range |
Load Capacitance |
Tolerance | Operating Temperature |
Datasheet |
|---|---|---|---|---|---|---|---|

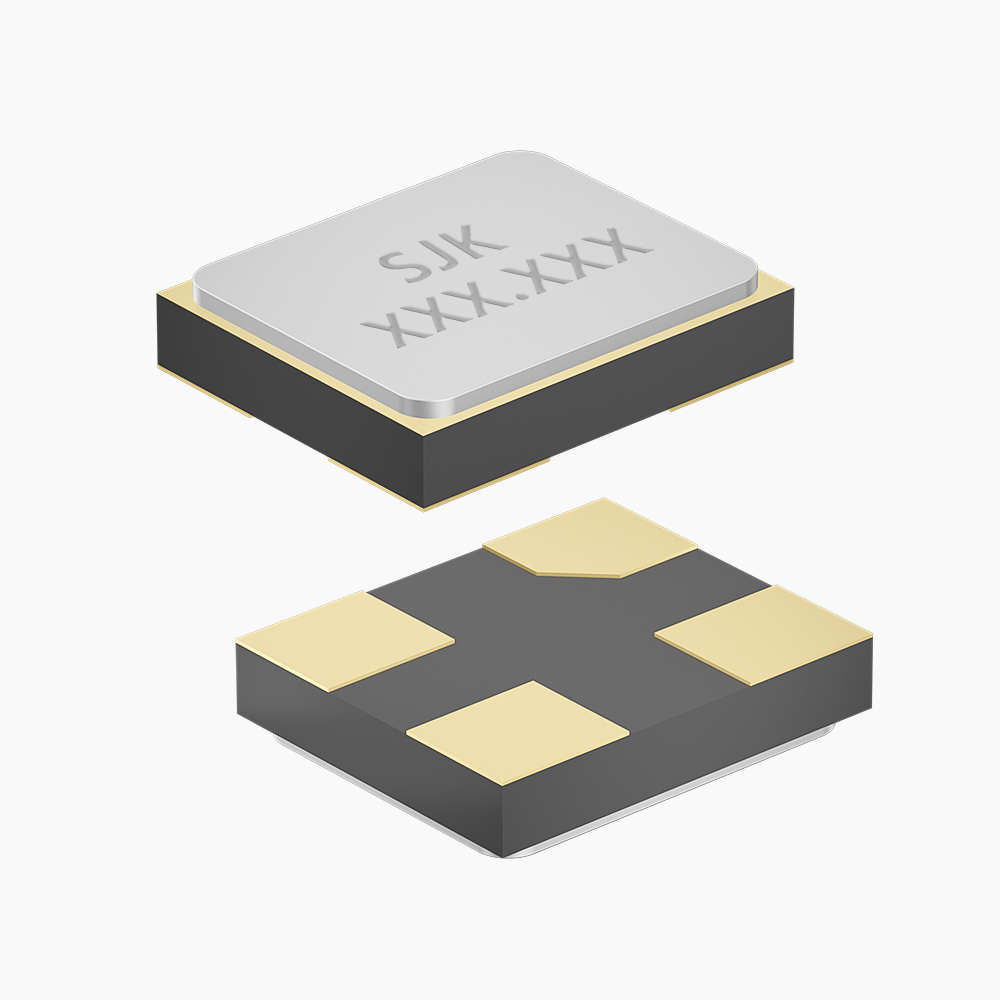

| 7S SMD1210 Crystal Resonator |  |
1210 4-SMD | 32~80MHz | 6~20pF | ±15ppm | -40~+85℃ | Datasheet |

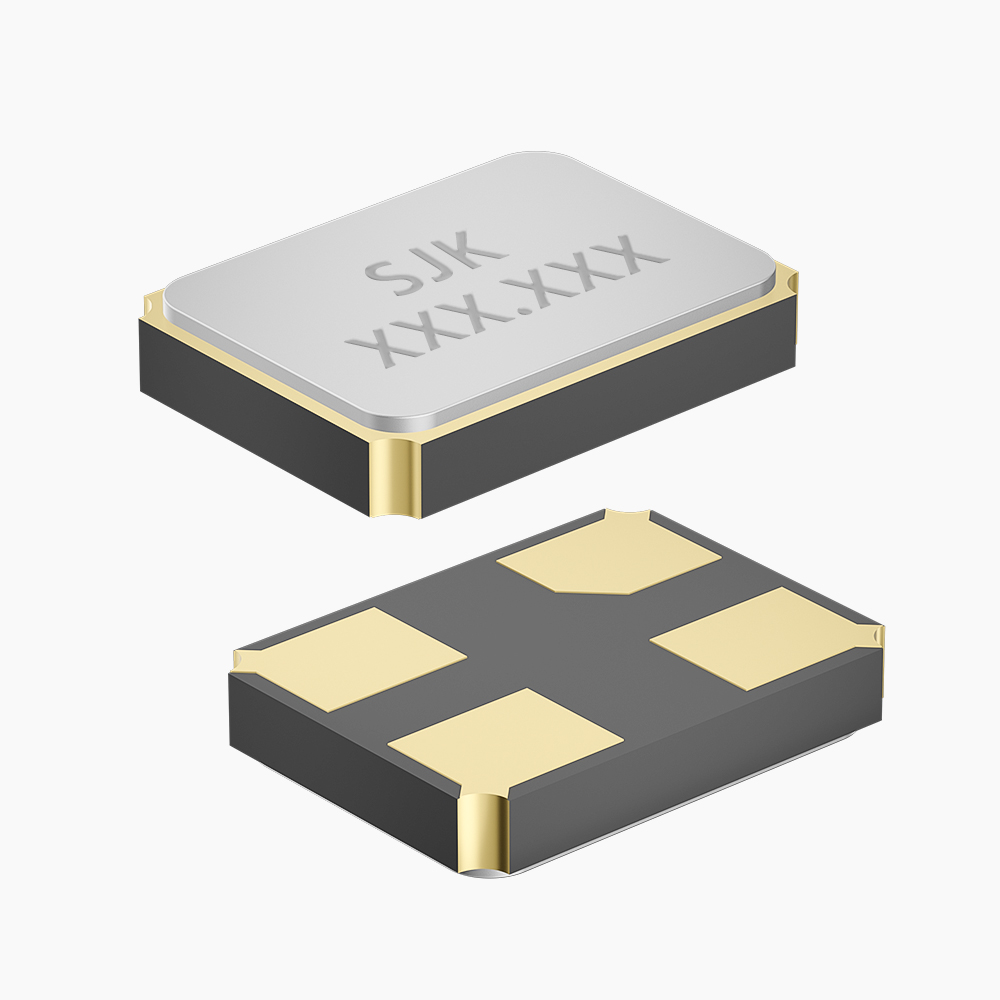

| 7Y SMD1612 Crystal Resonator |  |
1612 4-SMD | 24~80MHz | 6~32pF | ±10ppm | -40~+85℃ | Datasheet |

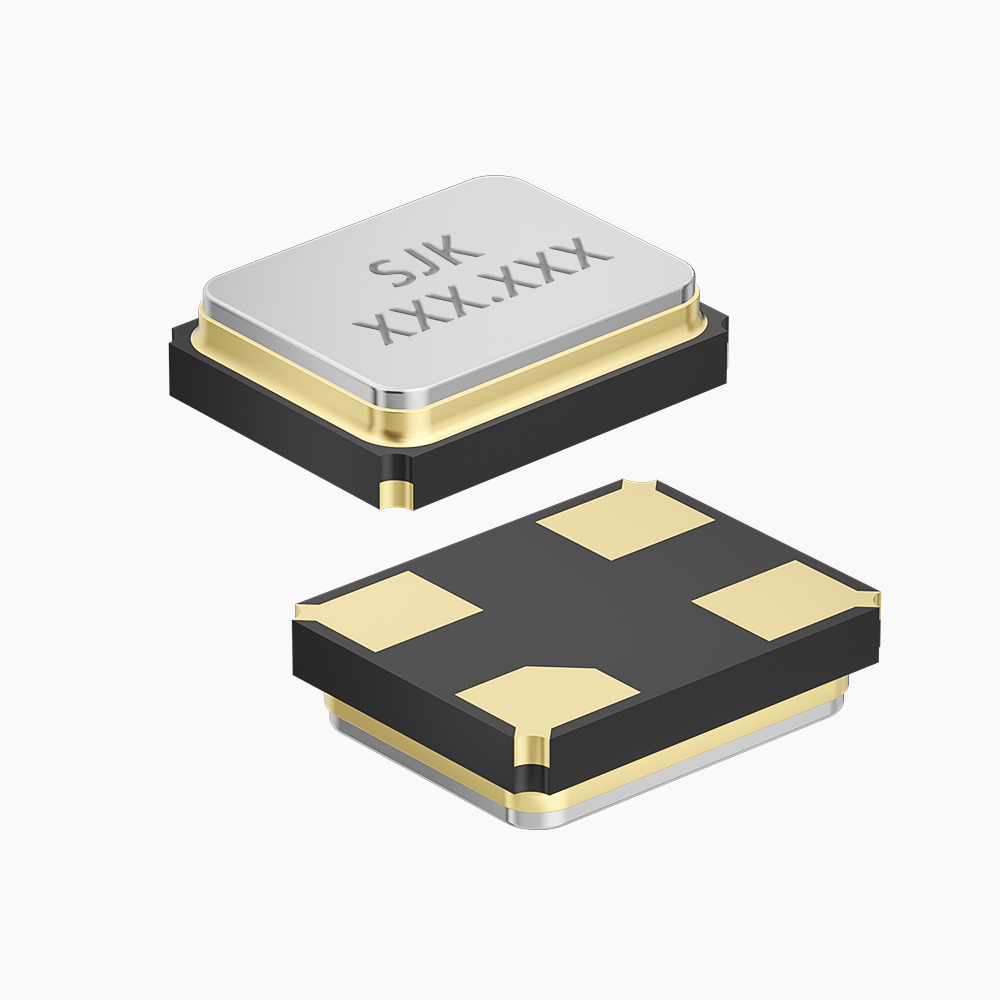

| 7F SMD2016 Crystal Resonator |  |
2016 4-SMD | 16~96MHz | 6~32pF | ±10ppm | -40~+85℃ | Datasheet |

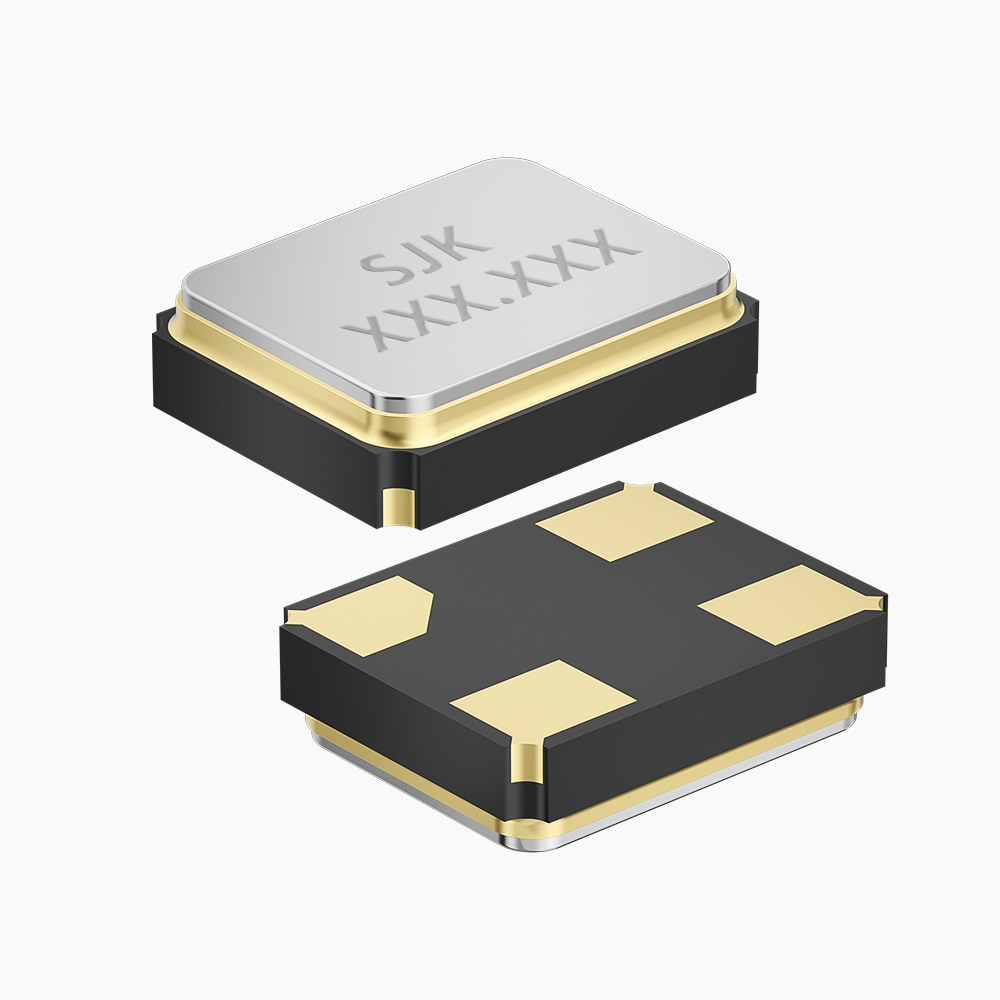

| 7E SMD2520 Crystal Resonator |  |
2520 4-SMD | 12~66MHz | 8~32pF | ±10ppm | -40~+85℃ | Datasheet |

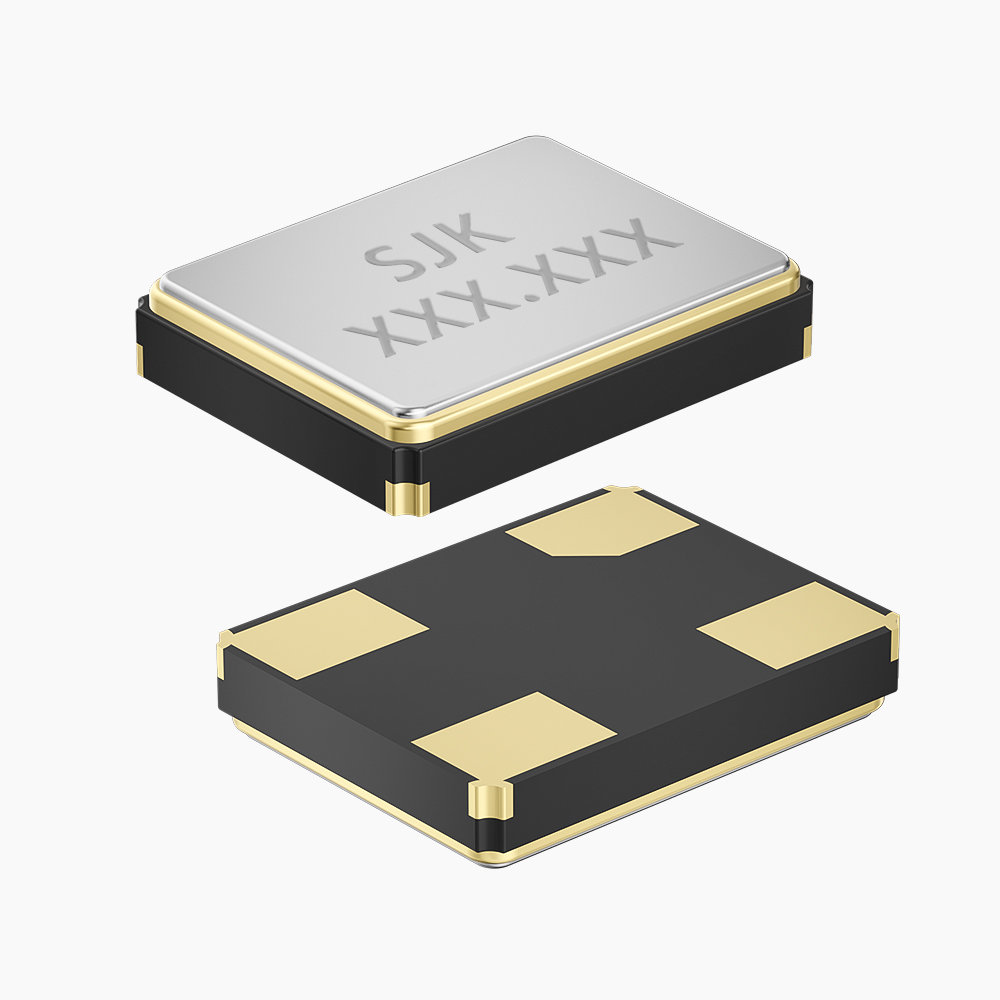

| 7U SMD3225 Crystal Resonator |  |
3225 4-SMD | 8~80MHz | 8~32pF | ±10ppm | -40~+85℃ | Datasheet |

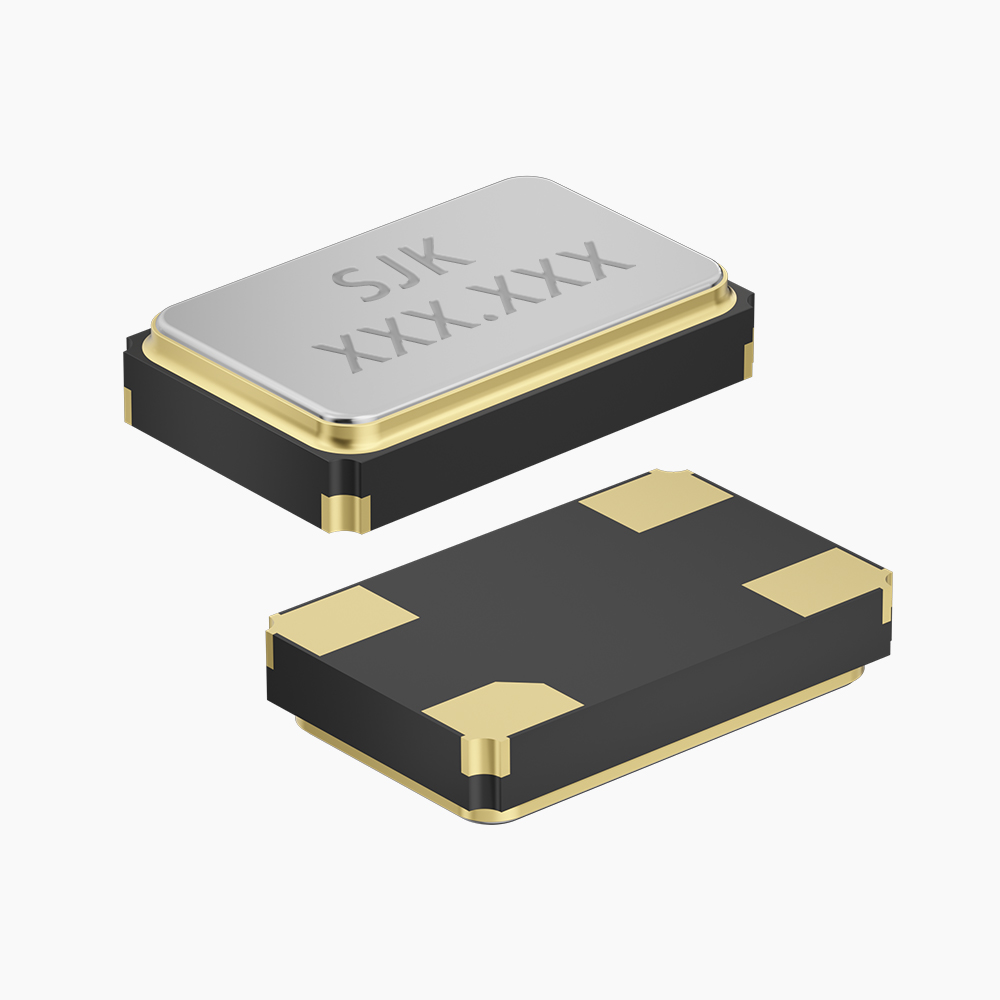

| 7I SMD5032 Crystal Resonator |  |
5032 4-SMD | 8~125MHz | 10~32pF | ±10ppm | -40~+85℃ | Datasheet |

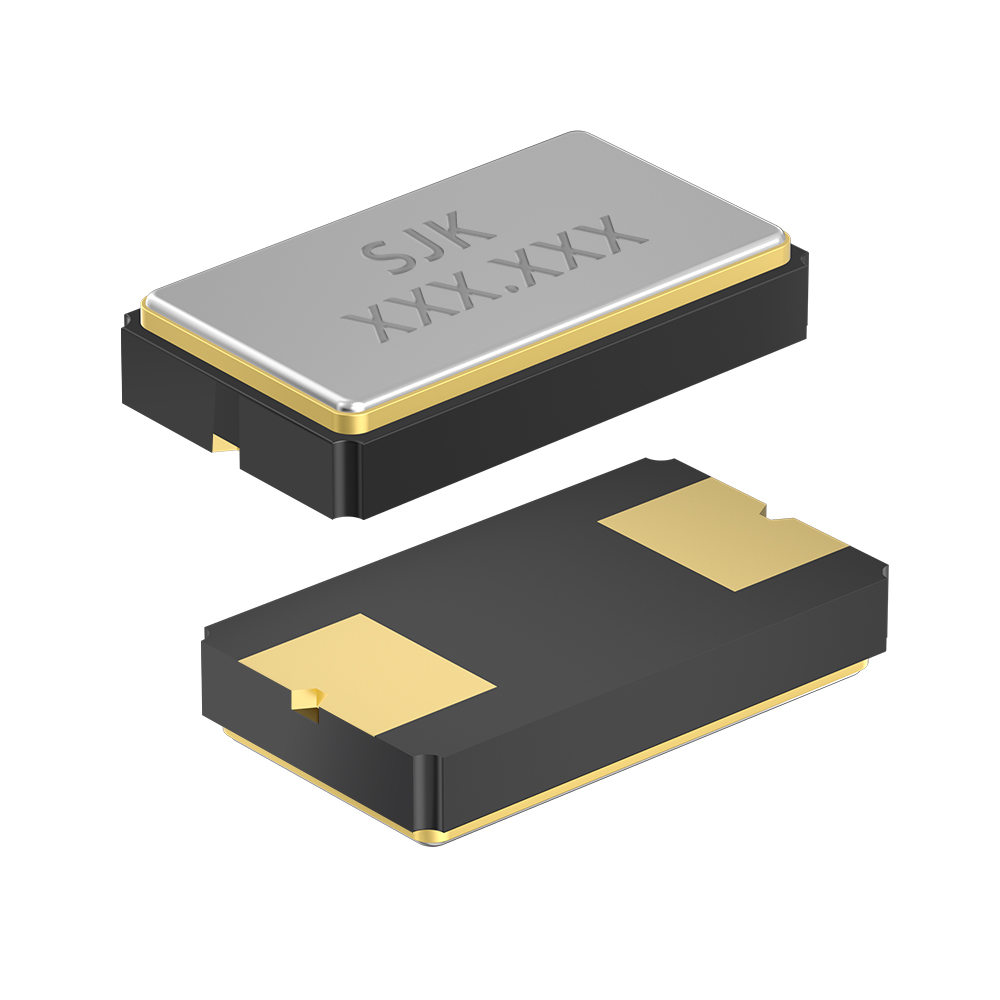

| 6J SMD6035 Crystal Resonator |  |
6035 2-SMD | 8~100MHz | 10~32pF | ±10ppm | -40~+85℃ | N/A |

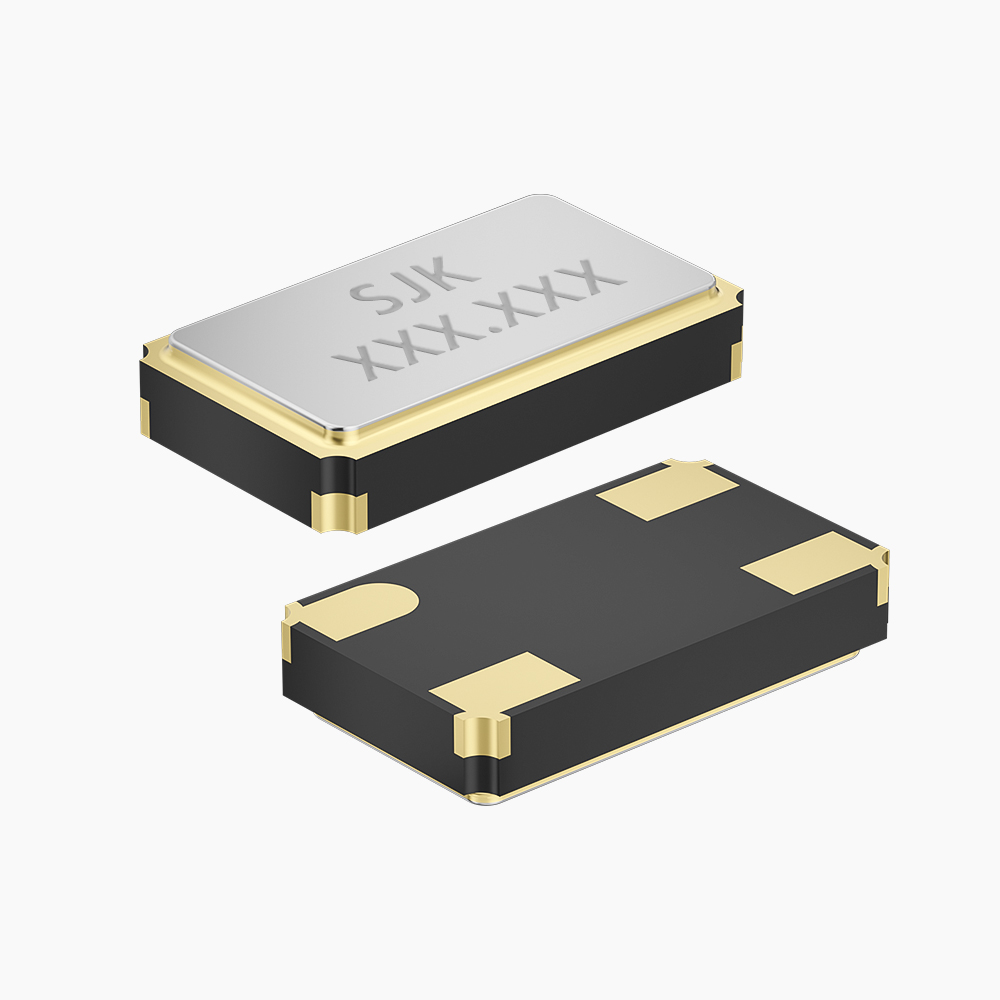

| 6G SMD6035 Crystal Resonator |  |
6035 4-SMD | 8~100MHz | 10~32pF | ±10ppm | -40~+85℃ | Datasheet |

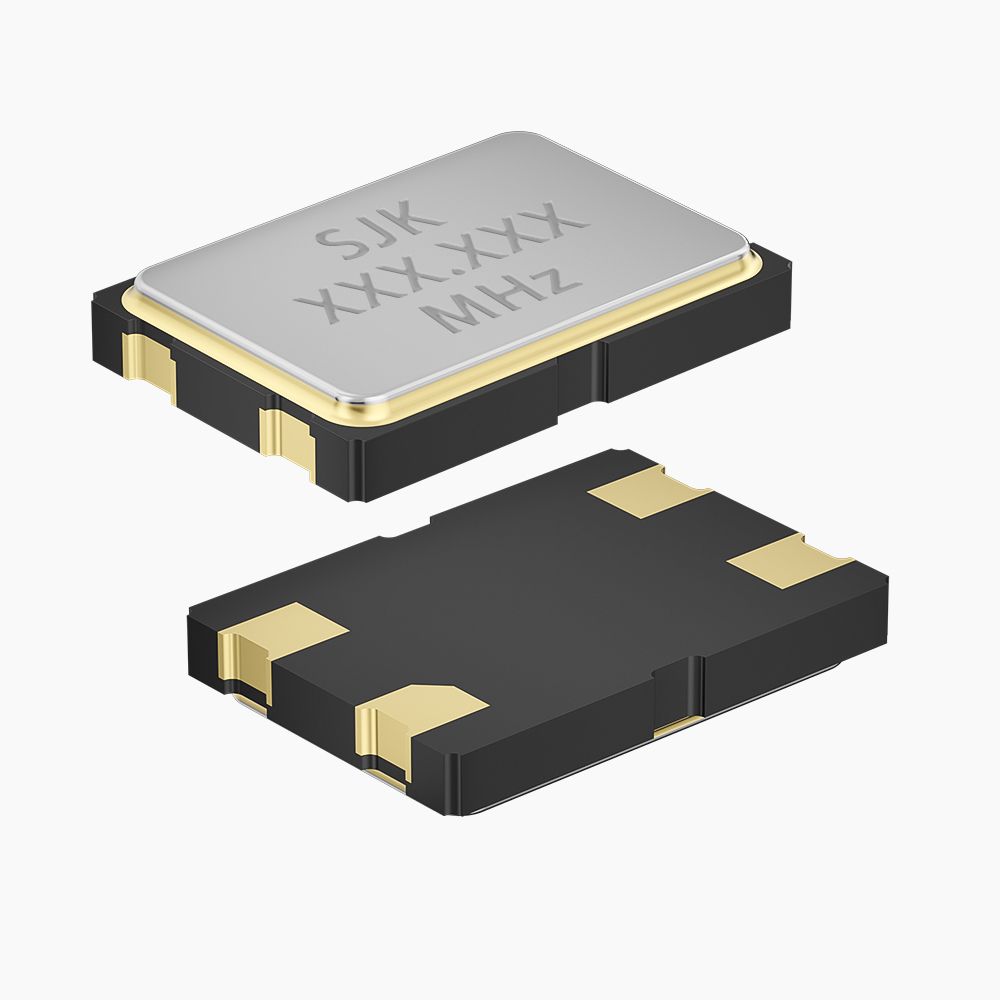

| 6F SMD7050 Crystal Resonator |  |
7050 4-SMD | 6~160MHz | 16~32pF | ±10ppm | -40~+85℃ | Datasheet |
| 7V SMD3225 Glass Crystal |  |
3225 4-SMD | 8~64MHz | 8~32pF | ±10ppm | -40~+85℃ | N/A |

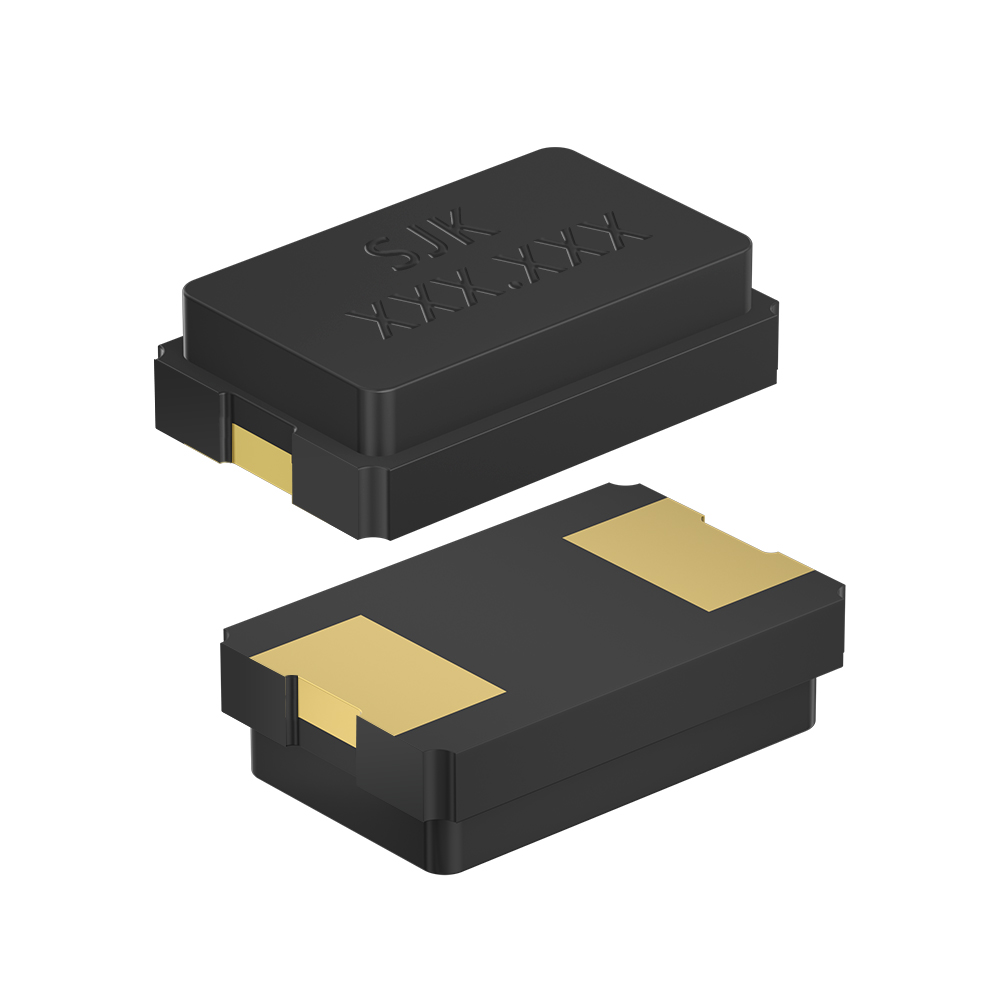

| 6I SMD5032 Glass Crystal |  |
5032 2-SMD | 8~64MHz | 10~32pF | ±10ppm | -40~+85℃ | Datasheet |
