| Series | Photo | Package | Frequency Range |
Output | Supply Voltage |
Frequency Stability |
Operating Temperature |
Datasheet |
|---|---|---|---|---|---|---|---|---|

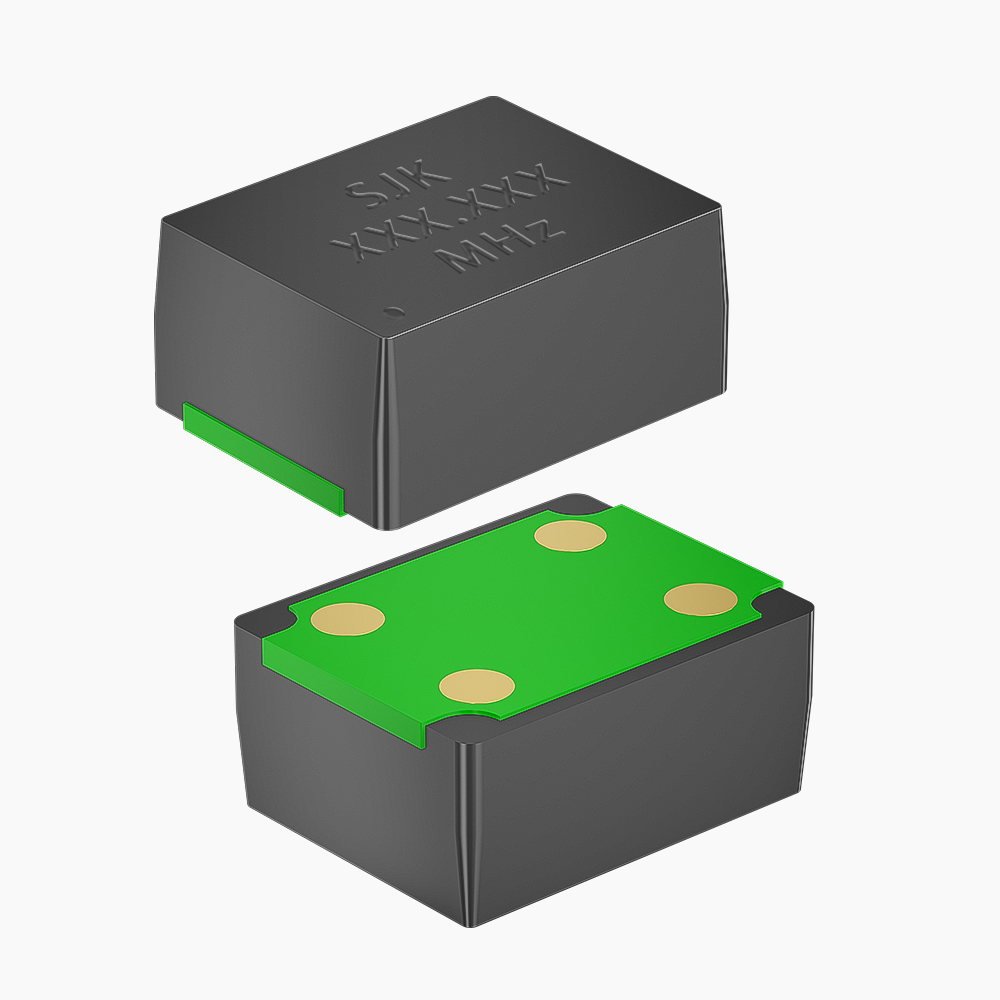

| 1X SMD0907 OCXO |
|
9×7 4-SMD | 10MHz~50MHz | CMOS | 3.3V /5V | ±5.0ppb | -40~+85℃ | Datasheet |

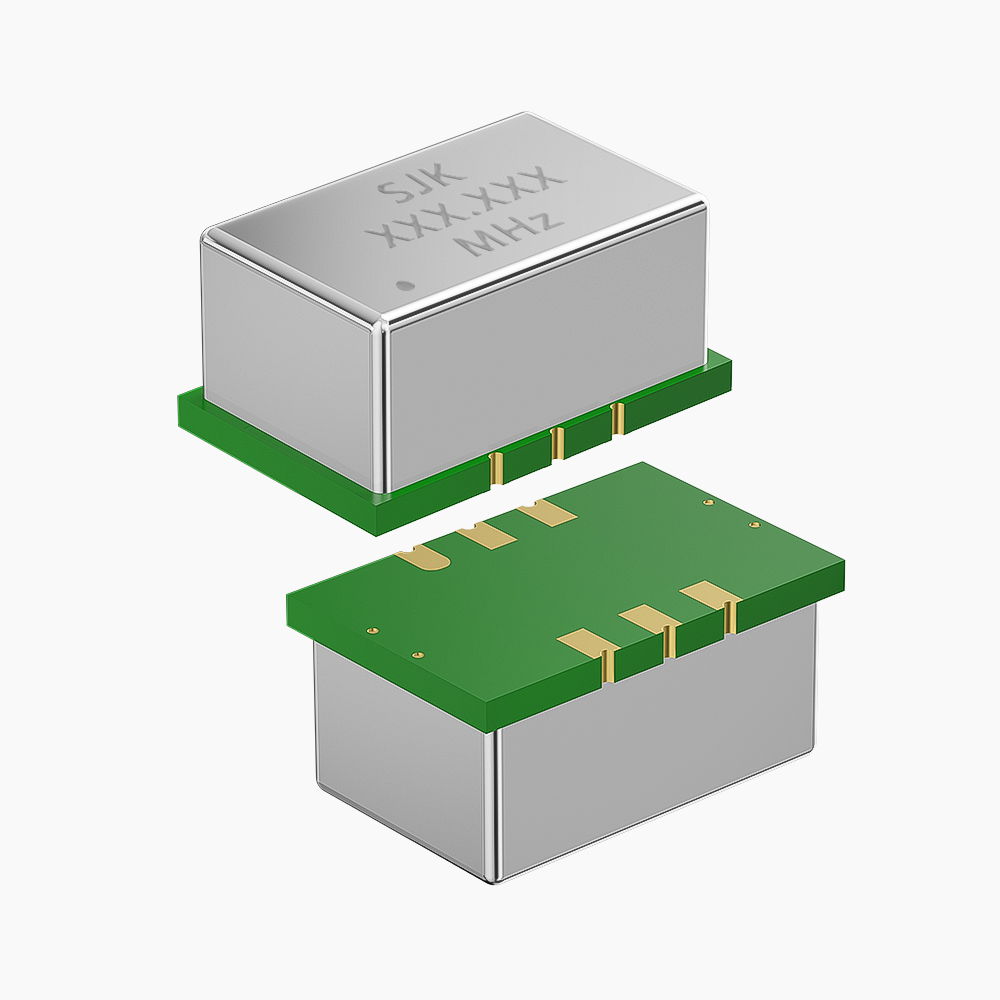

| 9X SMD1409 OCXO |
|
14×9 6-SMD | 10MHz~52MHz |
CMOS
Sinewave
|
3.3V /5V | ±1.0ppb | -40~+85℃ | Datasheet |
| 5X SMD2522 OCXO |
|
25×22 7-SMD | 10MHz~125MHz |
CMOS
Sinewave
|
3.3V /5V /12V
|
±0.5ppb | -40~+85℃ | Datasheet |
| 5X2 SMD2522 OCXO |
|
25×22 5-SMD | 10MHz~50MHz |
CMOS
Sinewave
|
3.3V /5V /12V
|
±0.5ppb | -40~+85℃ | Datasheet |

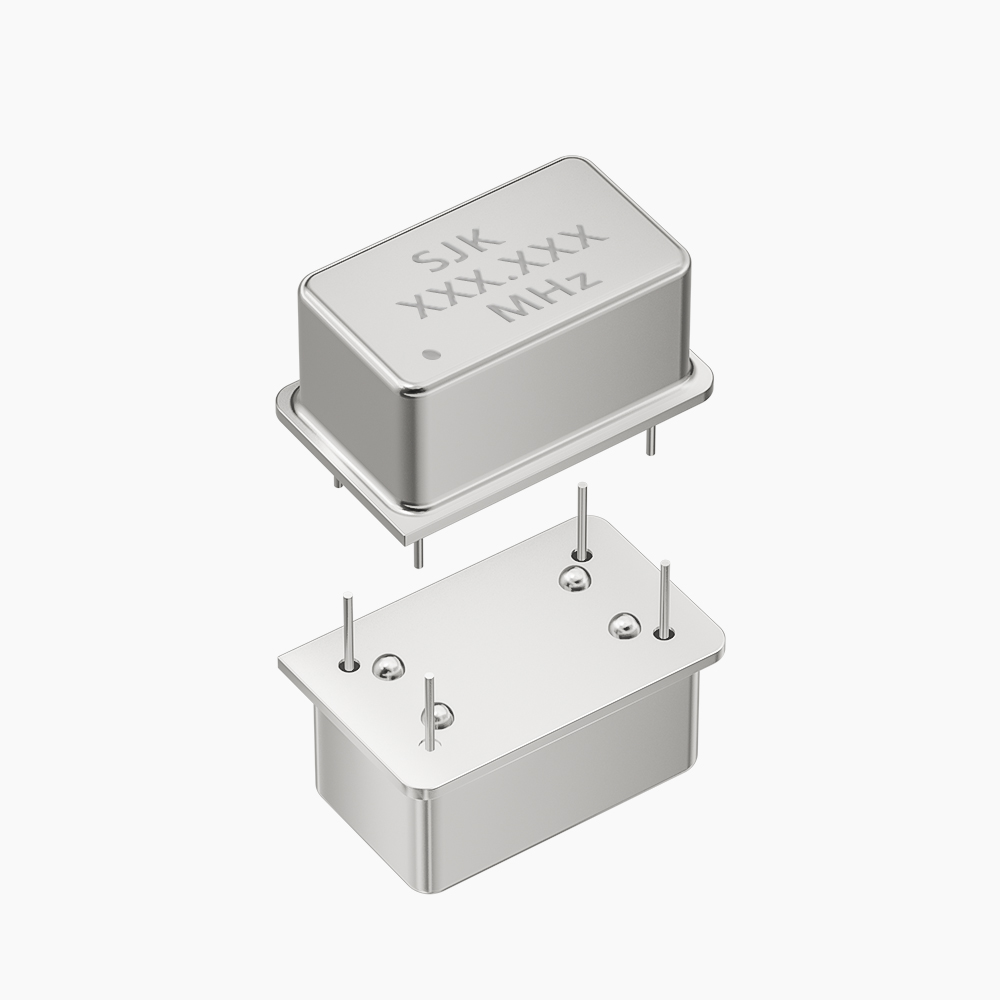

| 2X DIP-14 OCXO |
|
14 Pin DIP | 10MHz~125MHz |
CMOS
Sinewave
|
3.3V /5V | ±1.0ppb | -40~+85℃ | Datasheet |

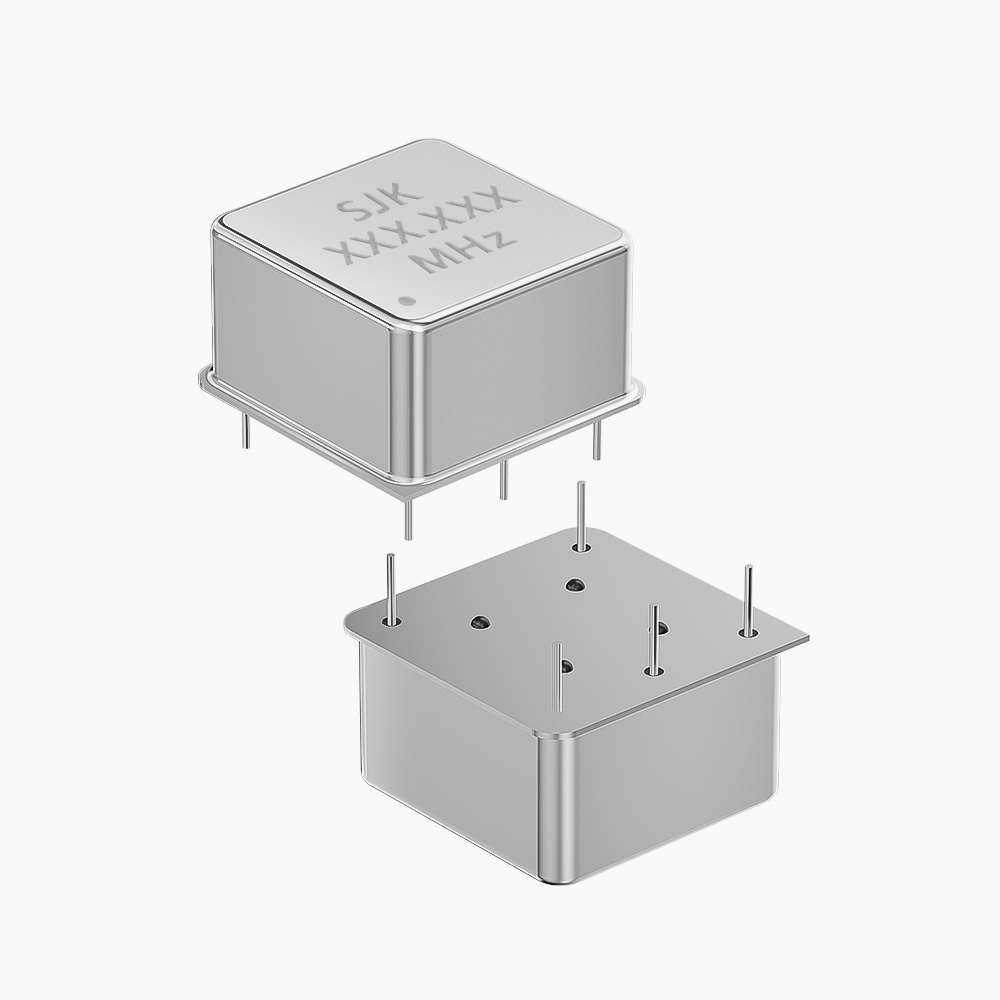

| 3X DIP2020 OCXO |
|
20×20 5 Pin | 10MHz~120MHz |
CMOS
Sinewave
|
3.3V /5V /12V
|
±0.5ppb | -40~+85℃ | Datasheet |

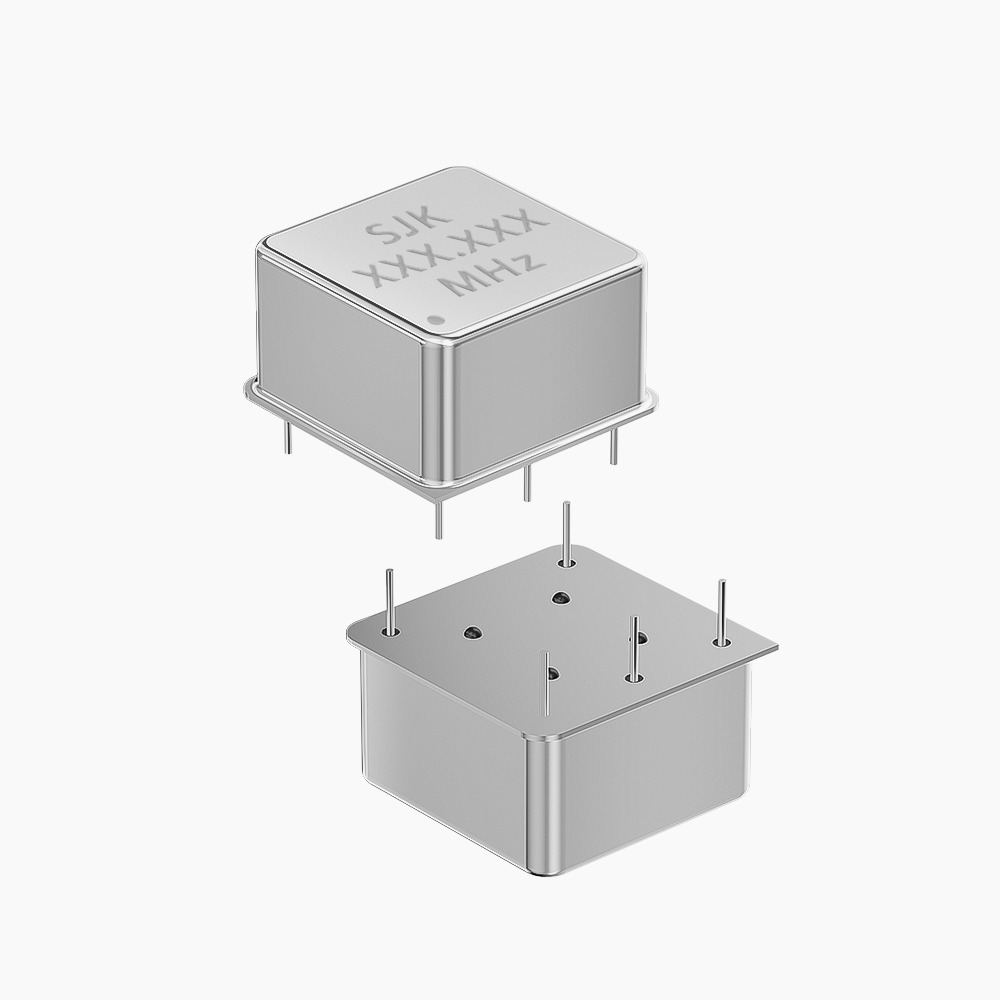

| 9M DIP2525 OCXO |
|
25×25 5 Pin | 10MHz~125MHz |
CMOS
Sinewave
|
3.3V /5V /12V
|
±0.5ppb | -40~+85℃ | Datasheet |

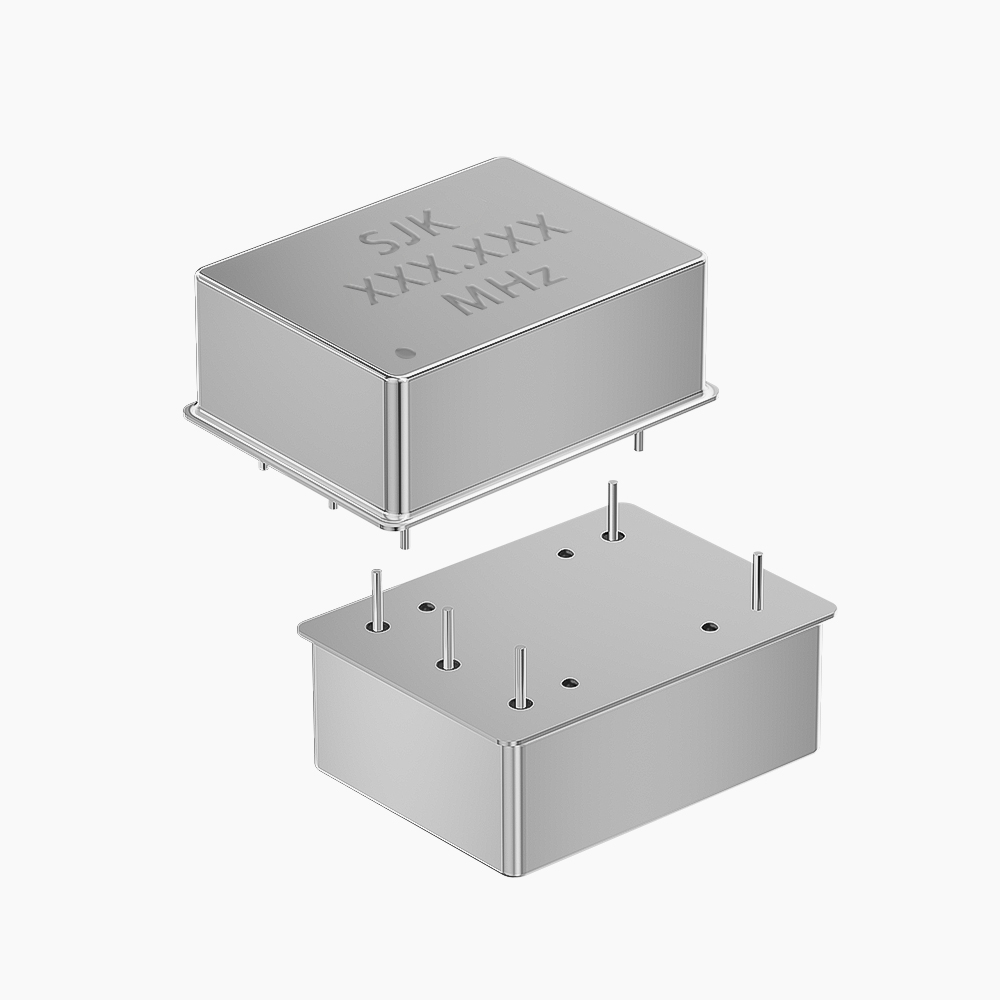

| 6X DIP3627 OCXO |
|
36×27 5 Pin | 10MHz~125MHz |
CMOS
Sinewave
|
3.3V /5V /12V
|
±0.1ppb | -40~+85℃ | Datasheet |
